M500 mini size long range detection night vision high quality thermal imager camera module

FOB Reference Price:Get Latest Price
US $1,500-3,200 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SCTI
Model Number:
M500
Type:
thermal imager
Style:
Mini Camera
Sensor:
infrared sensor
Technology:
Infrared
Special Features:
mni size
Detector:
Uncooled amorphous silicon FPA
Resolution:
640*480
Pixel pitch:
17um
Frame rate:
50HZ
Spectral range:
8-14um
Working voltage range:
DC: +2 .5V~5.5V
Power consumption:
<1.2W
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard plastic case with black sponge and carton box
Port
Shanghai
Lead Time :
Shipped in 15 days after payment

M500 mini long range detection night vision high quality thermal imager



Product features,

1. No shutter,non-uniformity calibration technology

2. Super lower power consumption: <1.2W

3. Instantaneous boot: <4S

4. Low working voltage: 2.5V-5.5V

5. Small size and light weight

6. High performance of temperature impact and environmental adapability



Applications,

Security and protection monitoring field, such as harbor, wharf, highway, coast defence and border defence, oil and gas field.



Technical parameters of M500 thermal imaging module

Items

Core

M500

Detector characteristic

Detector

Uncooled amorphous silicon FPA

Array format/Pixel pitch

640×480 / 17um

Sensitivity

≤60mk at f/1.0 300K

Frame rate

50Hz

Spectral range

8~14um

Imaging process

Shutter calibration

No shutter technology

Booting time

<4s

Noise reduction

Digital filter

Image resolution

640×480

Lens option

12mm,19mm,25mm,35mm,40mm,50mm,75mm,100mm,150mm

Thermal imaging adjustment

Polarity

White hot /Black hot

Mirror image

Horizontal/Vertical

Zoom

×2,×4

Manual Gain

Cycle adjustment

Auto Gain

Auto adjustment

Power

Working voltage range

DC: +2.5V~+5.5V

Typical voltage

DC:3.6V

Power consumption

<1.2W

Anti reverse voltage

Yes

Anti over voltage

Yes

Environmental parameters

Working temperature

-20ºC~+60ºC

Optional:-40ºC~+60ºC

Storage temperature

-45ºC~+65ºC

Humidity

5%~95% Non condensing

Vibration and shock

Vibration:GJB 150-16 2.3.1

Axial:GJB 150-18

Test7 100g/6ms

Anti temperature impact

-5ºC/min(-40ºC~+60ºC)

Physical parameters

Weight

<40g

Dimension

42.5mm×41mm×20mm

Interface

Power input port

Yes

Serial port

RS-232

Analog video output

BNC(75Ω);Support dual video output

Digital video output

14Bit(50Hz)

Keyboard

4 buttons keyboard

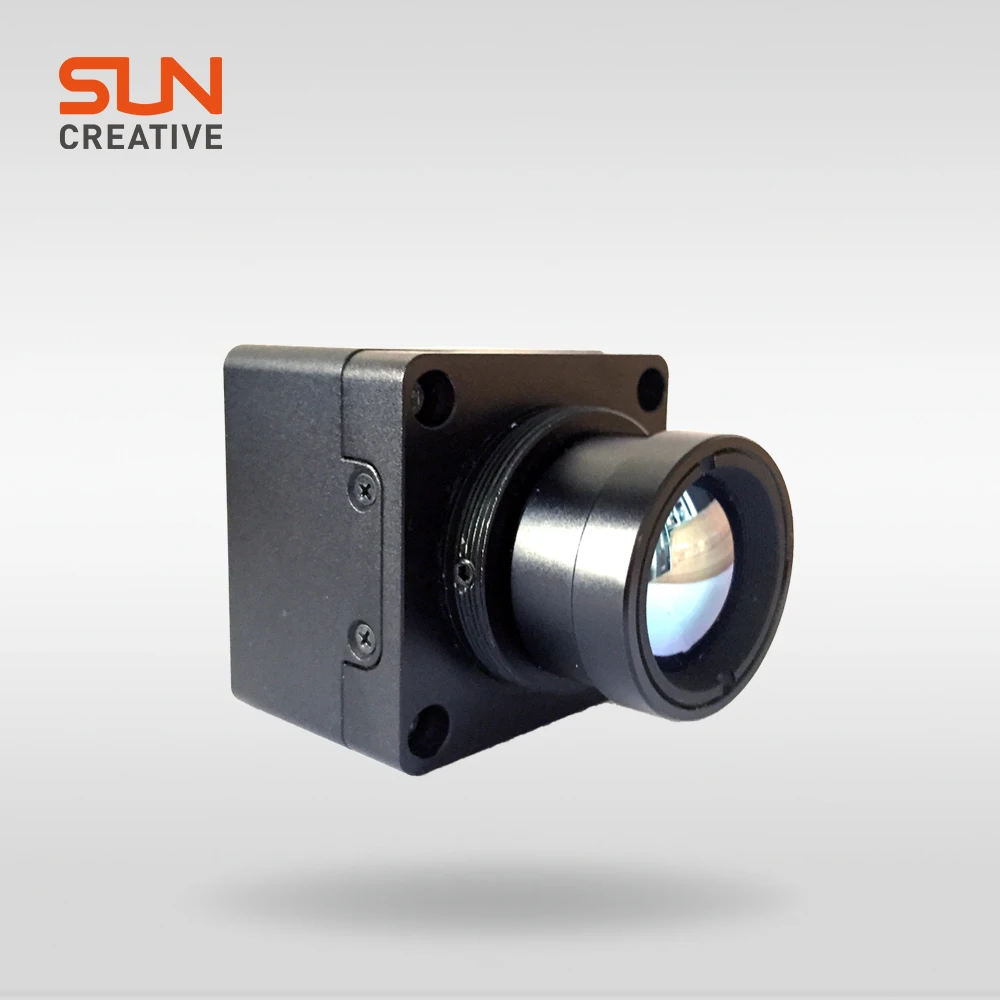

M500 mini long range detection night vision high quality thermal imager

 M-1

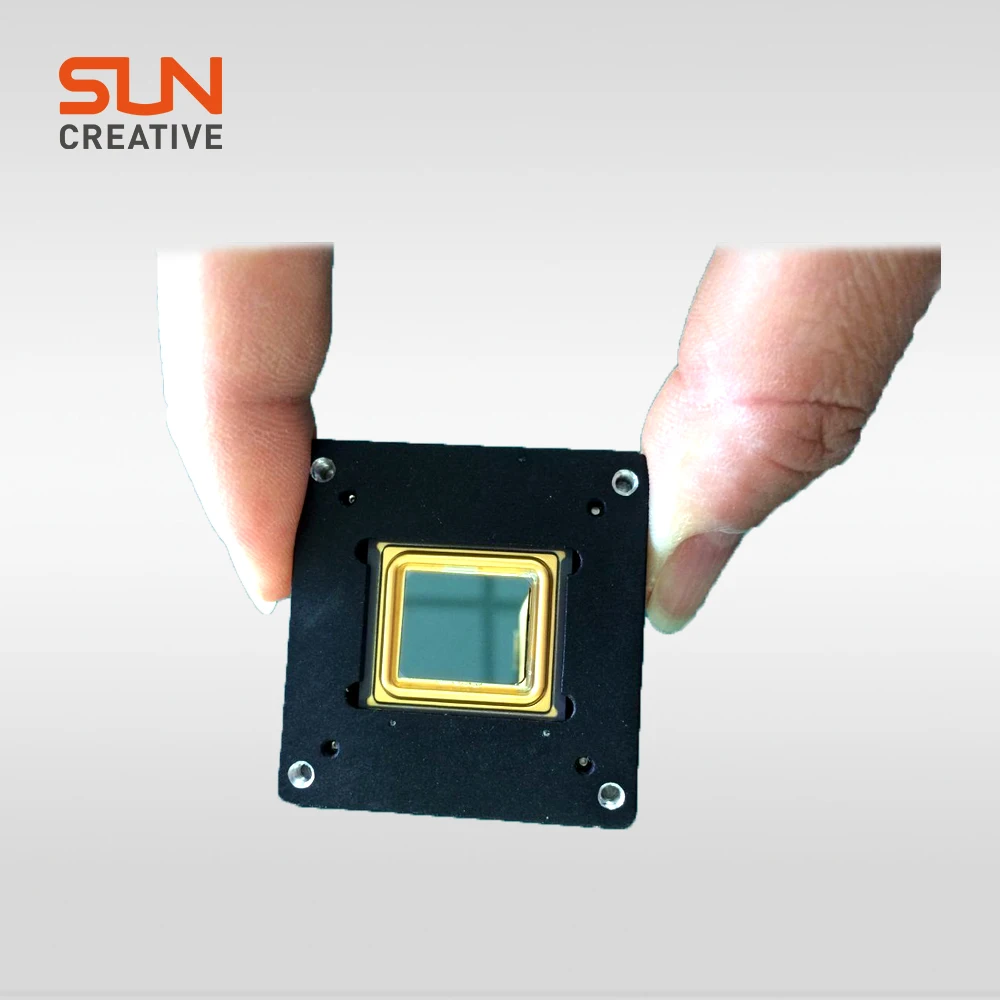

Core of M500 thermal imaging camera

 1398825252398_icbubuffer010096224052_21515021398825260806_icbubuffer010096224052_2151527

M500BACK-2

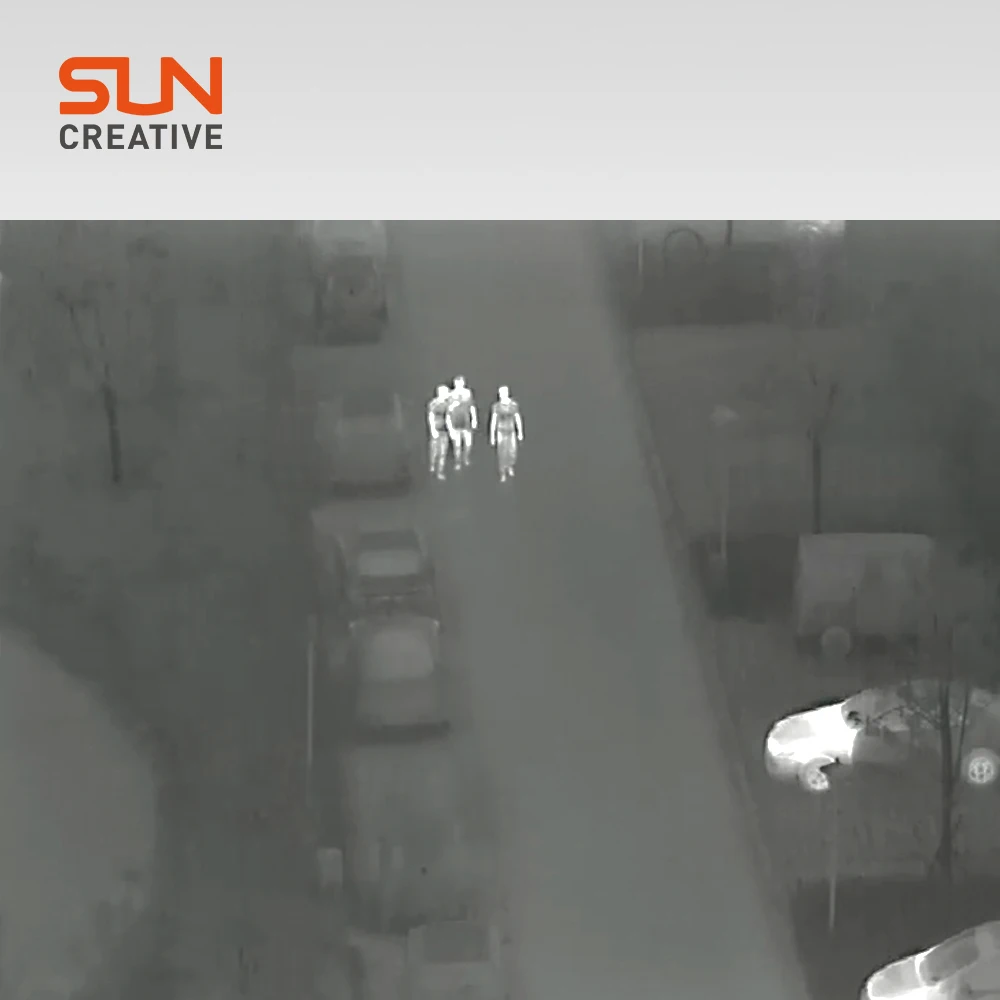

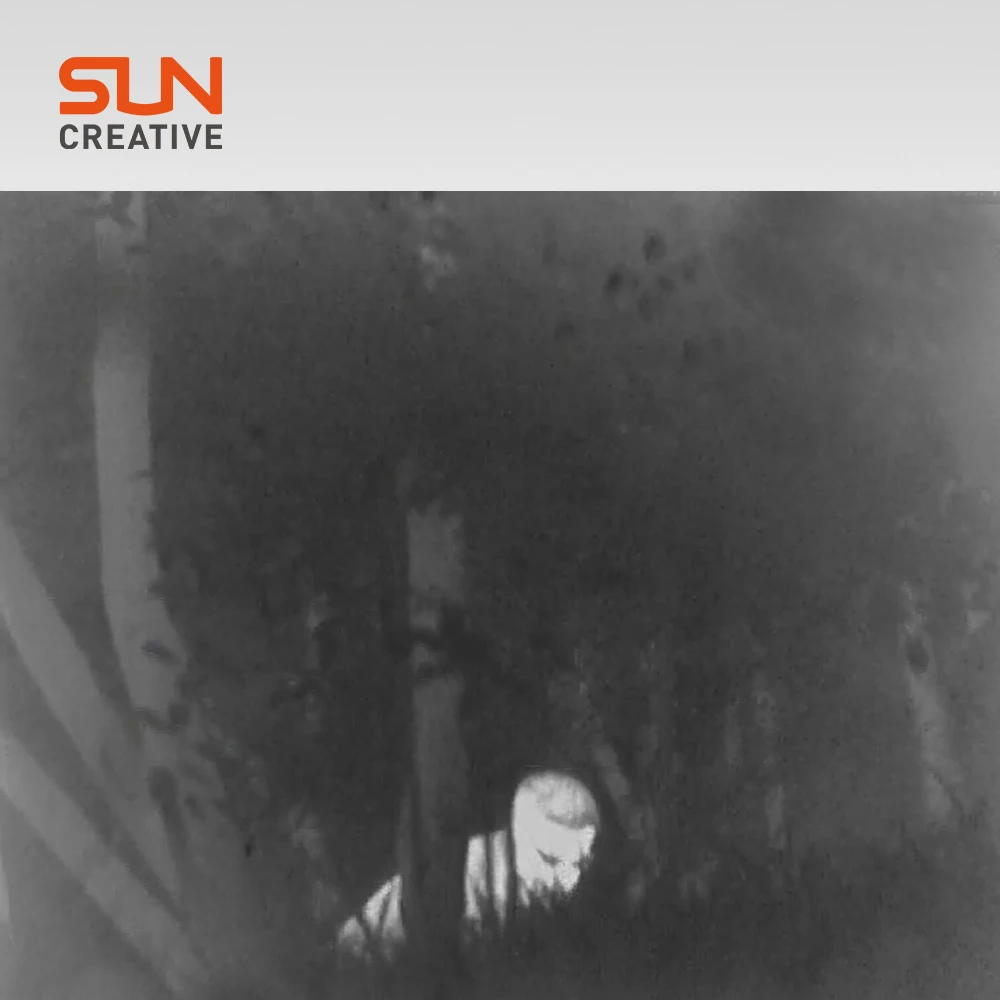

Analog video output images

Thermal ImageThermal Image-2Thermal Image-3Thermal Image-1





Lens observing distance

Lens



Certification



Company Information

 Banner-01



Established in the year of 2011 and headquarter located in Hangzhou, our company is mainly engaged in developing and producing thermal image technologies, thermal optical system. We have developed and built up long-term and trustworthy business relationship with our customers from all over the world.
