Mini size day and night vision thermal imaging cctv camera module M500 with 640x480 resolution

FOB Reference Price:Get Latest Price
US $1,500-3,200 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SCTI
Model Number:
M500
Type:
Analog Camera
Style:
Mini Camera
Sensor:
UFPA
Technology:
Infrared
Special Features:
night vision
Name:
night vision camera M500
Detector:
Uncooled amorphous silicon FPA
Features:
night vision ,thermal imaging
Resolution:
640*480/17um
Color:
Black/white
Frame Rate:
50HZ ( PAL )
Spectral range:
8-14um
power consumption:
<1.2W
Weight:
<40g
Warranty:
1 Year
Packaging & Delivery
Packaging Details
Standard plastic case with black sponge and carton box
Delivery Time
Shipped in 15 days after payment

Hot sell Mini size day and night vision thermal imaging cctv camera module M500 with 640x480 resolution







1. No shutter non-uniformity calibration technology

2. Super lower power consumption: <1.2W

3. Instantaneous boot: <4S

4. Low working voltage: 2.5V-5.5V

5. Small size and light weight

6. High performance of temperature impact and environmental adapability



Applications,

Security and protection monitoring field, such as harbor, wharf, highway, coast defence and border defence, oil and gas field.



Technical parameters of M500 thermal imaging module

Items

Core

M500

Detector characteristic

Detector

Uncooled amorphous silicon FPA

Array format/Pixel pitch

640×480 / 17um

Sensitivity

≤60mk at f/1.0 300K

Frame rate

50Hz

Spectral range

8~14um

Imaging process

Shutter calibration

No shutter technology

Booting time

<4s

Noise reduction

Digital filter

Image resolution

640×480

Lens option

11mm,12mm,19mm,25mm,35mm,40mm,50mm,75mm,100mm

Thermal imaging adjustment

Polarity

White hot /Black hot

Mirror image

Horizontal/Vertical

Zoom

×2,×4

Manual Gain

Cycle adjustment

Auto Gain

Auto adjustment

Power

Working voltage range

DC: +2.5V~+5.5V

Typical voltage

DC:3.6V

Power consumption

<1.2W

Anti reverse voltage

Yes

Anti over voltage

Yes

Environmental parameters

Working temperature

-20ºC~+60ºC

Optional:-40ºC~+60ºC

Storage temperature

-45ºC~+65ºC

Humidity

5%~95% Non condensing

Vibration and shock

Vibration:GJB 150-16 2.3.1

Axial:GJB 150-18

Test7 100g/6ms

Anti temperature impact

-5ºC/min(-40ºC~+60ºC)

Physical parameters

Weight

<40g

Dimension

42.5mm×41mm×20mm

Interface

Power input port

Yes

Serial port

RS-232

Analog video output

BNC(75Ω);Support dual video output

Digital video output

14Bit(50Hz)

Keyboard

4 buttons keyboard

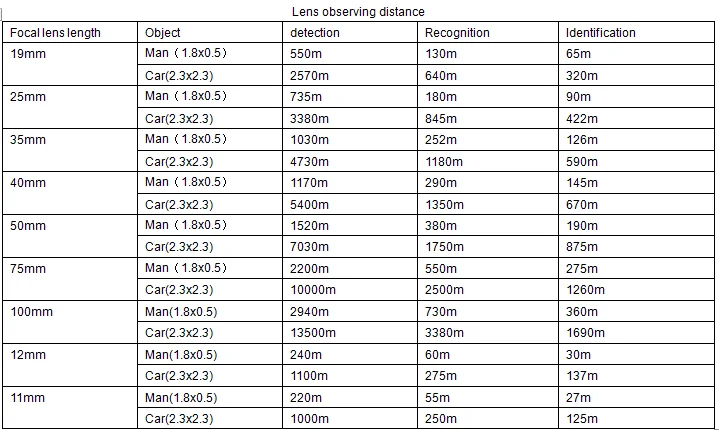

 Lens Details :
