T300-60 long range detection thermal night vision security binoculars

FOB Reference Price:Get Latest Price
US $3,500-7,000 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
100 Piece/Pieces per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SCTI
Model Number:
T300-60
Type:
Analog Camera
Style:
handheld
Sensor:
infrared sensor
Technology:
Infrared
Special Features:
portable
Product name:
T300-60 thermal binoculars
Feature:
Night Version
Resolution:
384*288
Pixel pitch:
17um
Lens:
60mm,F#=0.8
Sensitivity:
≤60mk@300K
Frame rate:
50HZ
Storage capacity:
4G
working time:
>6H
Warranty:
1year
Packaging & Delivery
Packaging Details
ABS protection case and carton box
Delivery Time
Shipped in 15 days after payment

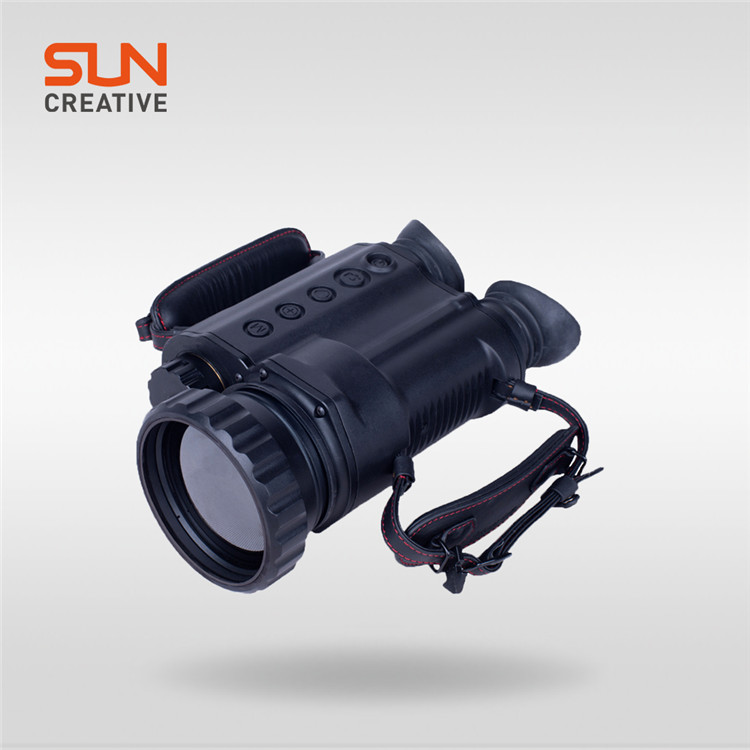

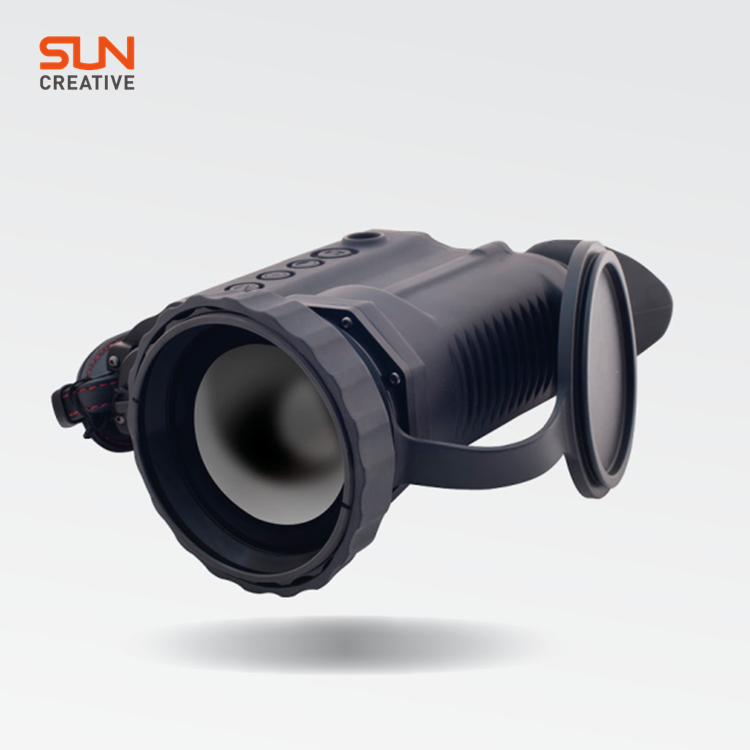

T300-60 long range detection thermal night vision security binoculars





T300-60 uses high resolution and sensitivity thermal imaging core as engine, with 60mm F#=0.8 lens and high definition OLED. It has high performance, small size, light weight, long working time and portable feartures.



Patent no shutter technology,

The T300-60 adopts Sun creative M700 thermal imaging module as engine, leading no shutting non-uniformity calibration technology, continuously video output. As no shutter organ inside makes it can bear higher shock and vibration.



High sensitivity,

NETD 60mk high sensitivity, the camera can output clear video in different weathers.



Instantaneous boot,

5-8 seconds for starting up, good for special applications.



Images and video recording,

4G built in SD card for images saving and video recording.



Low power consumption and long working time,

The power consumption can lower to 2.8W, continuously working time up to 4 hours.

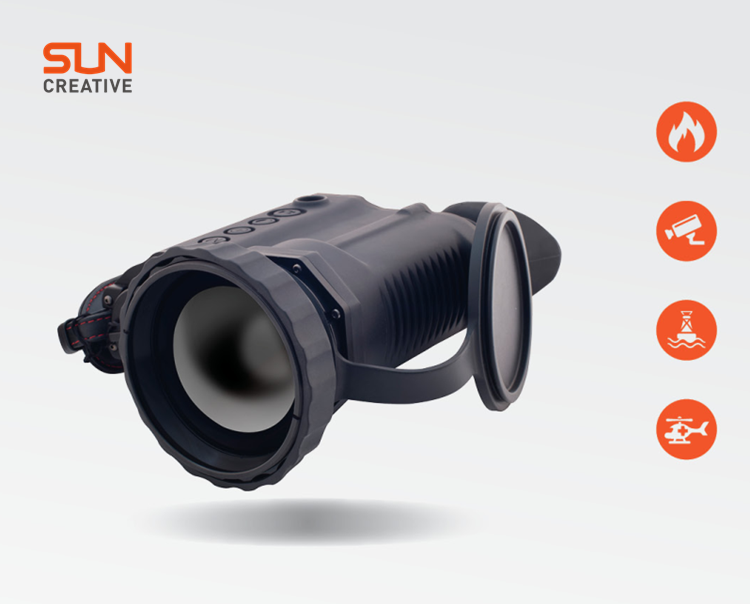

Applications,

Security and protection monitoring field, such as harbor, wharf, highway, coast defence and border defence, oil and gas field.





Technical parameters of T300-60 thermal imaging binoculars

Imaging performanceDetector uncooled amorphous silicon FPA
 array format/pixel pitch 384*288/17um
 sensitivity less than 60mk @300k,50hz
 frame rate 50hz
 spectral range  8~14um
 lens 60mm F#=0.8
 FOV 6.2°(H)*4.7º(V)
 spatial resolution 0.28mrad
 focus manual focus
image processingnonuniformity calibration no shutter technology
 minimum starting up time <8s
 noise reduction digital filter
 image adjust auto/maual adjust
 zoom x2,x4
 image definition 768*576(CCIR)
 polarity white hot/black hot
  image output OLED 800*600 resolution *2
  OLED display adjustment brightness/contrast adjust
 image/video storageSD card  4G
  image format JPEG
  recording duration   >4.5H
 powerworking voltage range    DC:+2.6V~+5.5V
  battery  one 26650 battery
  power consumption  <2.8W
  continuous working time  >6 hours @300k
  working time with continuous recording  >3.5 hours @300k
  over voltage protection yes
  reserve voltage protection yes
 interfacepower port  yes
  USB port yes
  video output yes(PAL)
  serial port RS232
 environmental parameterworking temperature  range -40°c~60°c(typical)
  storage temperature range -45°c~65°c
  humidity 10%~95% non-condensing
  encapsulation IP67
 physical parameterweight 1.2kg with battery

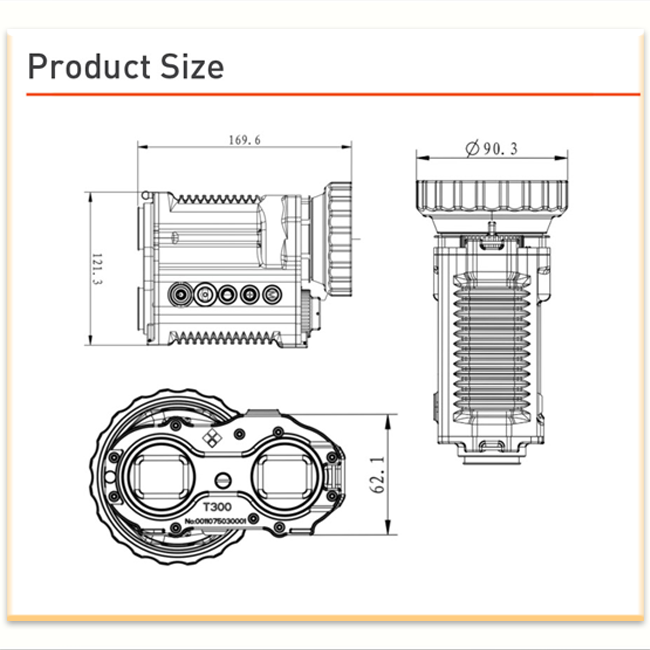

  dimension 169.5mmx123.5mmx62.5mm
 accessoriescable  with USB, video connector and RS232 cable
   2 Li batteries with 3000mAh -40°c~60°c
  charger Li batteries charger 110V~240V
  USB enhancerUSB signal enhancer
  Bag(optional) carry bag









 T300-60 long range detection thermal vision security binoculars
