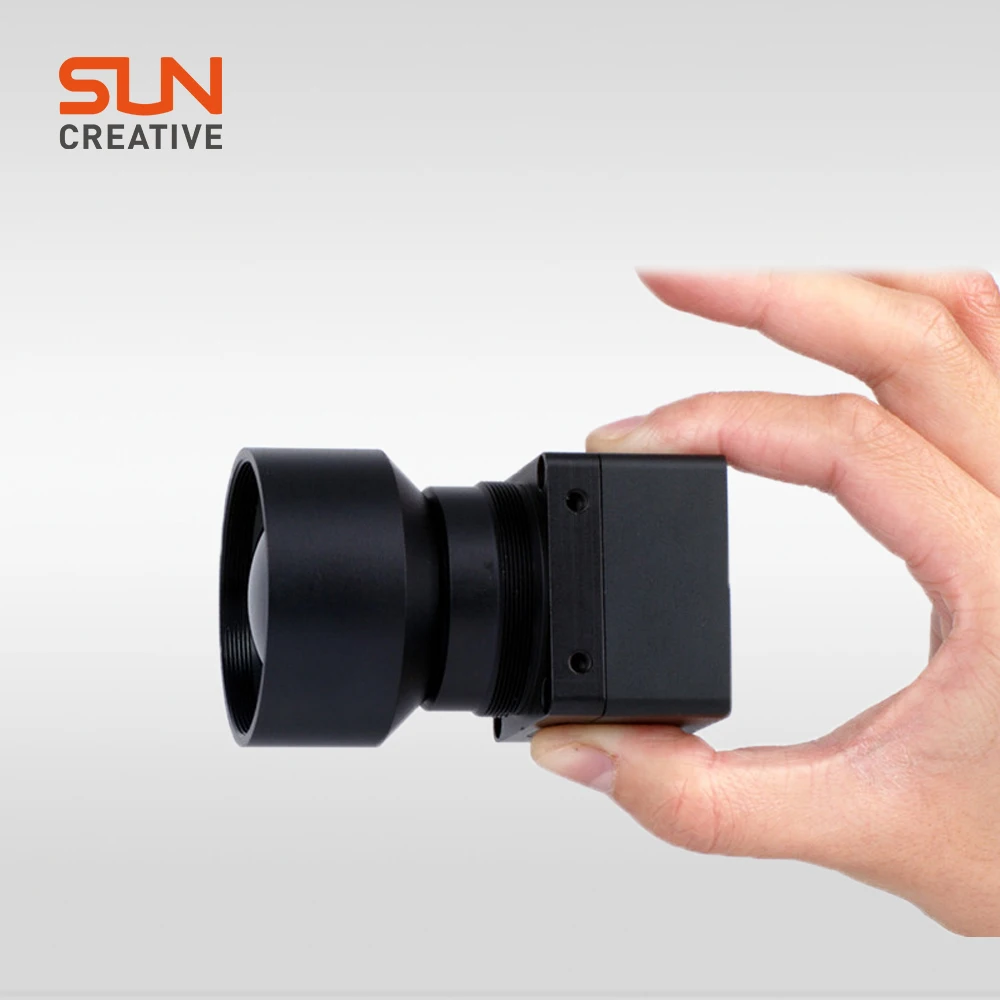

M700 long range human car detection UAV drone thermal camera

FOB Reference Price:Get Latest Price
US $1,600-2,000 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SCTI
Model Number:
M700
Type:
Analog Camera
Style:
Mini Camera
Sensor:
infrared sensor
Technology:
Infrared
Special Features:
mini size
Detector:
uncooled amorphous silicon FPA
Resolution:
384x288/17um
Feature:
night version and no shutter
Effective Visual Distance:
48m~13800m
Magnification:
x2,x4
Operating Voltage:
+2 .5V~+5.5V
Power consumption:
<0.65W
Weight:
<40g
Size:
42 .5mmx41mmx20mm
Warranty:
1 Year
Packaging & Delivery
Packaging Details
Standard plastic case with black sponge and carton box
Delivery Time
Shipped in 15 days after payment

   M700 long range human car detection UAV drone thermal camera





1. No shutter,non-uniformity calibration technology(NST)

2. Super lower power consumption: <0.65W

3. Instantaneous boot: <3S

4. Low working voltage: 2.5V-5.5V

5. Small size and light weight

6. real-time continuous thermal vedio output





Applications,

Security and protection monitoring field, such as harbor, wharf, highway, coast defence and border defence, oil and gas field.



Technical parameters of M700 thermal imaging module

Items

Core

M700

Detector characteristic

Detector

Uncooled amorphous silicon FPA

Array format/Pixel pitch

384×288 / 17um

Sensitivity

≤60mk at f/1.0 300K

Frame rate

50Hz

Spectral range

8~14um

Imaging process

Shutter calibration

No shutter technology

Booting time

<3s

Noise reduction

Digital filter

Image resolution

768×576

Lens option

12mm,19mm,25mm,35mm,40mm,50mm,75mm,100mm,150mm

Thermal imaging adjustment

Polarity

White hot /Black hot

Mirror image

Horizontal/Vertical

Zoom

×2,×4

Manual Gain

Cycle adjustment

Auto Gain

Auto adjustment

Power

Working voltage range

DC: +2.5V~+5.5V

Typical voltage

DC:3.6V

Power consumption

<0.65W

Anti reverse voltage

Yes

Anti over voltage

Yes

Environmental parameters

Working temperature

-20ºC~+60ºC

Optional:-40ºC~+60ºC

Storage temperature

-45ºC~+65ºC

Humidity

5%~95% Non condensing

Vibration and shock

Vibration:GJB 150-16 2.3.1

Axial:GJB 150-18

Experiment:7 100g/6ms

Lateral:GJB 150-18

Experiment:5 40g/11ms

Anti temperature impact

-5ºC/min(-40ºC~+60ºC)

Physical parameters

Weight

<40g

Dimension

42.5mm×41mm×20mm

Interface

Power input port

Yes

Serial port

RS-232

Analog video output

BNC(75Ω);Support dual video output

Digital video output

16Bit(50Hz)

Keyboard

4 buttons keyboard







              M700 long range human car detection UAV drone thermal camera









Lens observing distance
