Infrared Technology and IP Camera Type ip camera; Super wide-angle dual spectrum system

FOB Reference Price:Get Latest Price
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNCTI
Model Number:
YG605
Type:
IP Camera
Style:
Box Camera
Sensor:
ULIS; Uncooled amorphous silicon FPA
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Thermal imaging algorithm:
IDE; HDR
Infrared resolution:
640*480
Warranty:
12 Months
IR Distance:
3000m
Networking protocol:
PELCO-D;PELCO-P;
SupplyAbility
SupplyAbility:
300 Piece/Pieces per Month
Packaging & Delivery
Port
shanghai
Lead Time :
within 15days

Product features

Super wide FOV (field of view), the FOV of thermal camera could reach up to 120°.



Built in high sensitivity infrared thermal imaging camera with large aperture lens, and ultralow illumination integrated HD IPC; all have been carried over a 360°mini-size omnidirectional PTZ platform; supports near range fast search and monitoring.



Powerful embedded intelligent analysis algorithm makes motion detection, region intrusion detection, line crossing detection, moving path tracking, target enhancement and other intelligent analysis functions done in the device.



Leading thermal imaging procession algorithm: IDE(image details enhancement algorithm), HDR(high dynamic range algorithm: sea-sky mode, sky-earth mode).



Embedded high temperature alarm module, it can accurately pre-alarm the fire source in time based on the leading temperature alarming algorithm; the prealarming grades are adjustable, applicable for the need of fire pre-alarming in different scenes.



Powered by complete functions and interfaces; standardized security interface design; ONVIF and GB28281 compliant, easily access to the platform.






YG605



Technical Specification

Items/Technical specification

ZS-YG305

ZS-YG605

Thermal camera parameters

Detector type

Uncooled Microbolometer FPA (Amorphous Silicon )

IR Resolution/

Pixel pitch

384×288/17μm

640×480/17μm

Thermal Sensitivity(NETD)

≤60mk

Frame rate

50Hz

Spectral range

8~14μm

Focal length &FOV

5mm     72°x 54°

5mm     120°x 90°

Focus

Athermalized ,Focus-free

Digital zoom

1~8× continuous

Thermal image process algorithm

IDE(Image Detail Enhancement), HDR(High Dynamic Range, Sea-Sky mode, Sky-land mode)

Thermal image intelligent function

Motion detection, Intrusion, Moving path, Target enhancement

High-temperature alarm

High-Temperature tracking, Over-temperature alarm

Visible camera parameters

Matrix type

1/2.8 CMOS

Effective pixels

1920(H)×1080(V)

Optical

Focus: 4.7~94 mm,

20 × optical zoom

FOV

61.4~2.9°(wide end ~ tele end)

F-number

F1.6~F3.5

Minimum Illumination

Color:0.05Lux @ ( F1.6, AGCON )

Black:0.01Lux @ ( F1.6, AGCON )

Video compression

H.264/MJPEG

Video preview

Support preview by IE explorer, PC client

Camera physical specification

Pan/Tilt speed (Manual)

Pan:0.5°~60°/s

Tilt:0.5°~50°/s

Pan/Tilt speed

(Preset)

Pan: 60°/s

Tilt: 50°/s

Pan/Tilt Range

Pan: 360°continuous ;  Tilt: 115°(-25°~ +90°)

Programmable Preset

255

Automatic function

Line scan, preset point patrol

Watching function

Can set a preset point / set auto patrol line / auto line scan

Video Output interface

Ethernet & Female BNC

Platform compatibility

Support ONVIF , GB28181

Network interface

RS-485

Baud rate

2400/4800/9600/19200 bps

Network protocol

PELCO-D, PELCO-P & etc.

Input voltage

DC12V

Power consumption

 24W

Operating temperature range

-20℃~+60

Humidity

0~95% (no condensation)

Size

150mm x 150mm x 205mm

Weight

3 Kg

IP rating

IP66

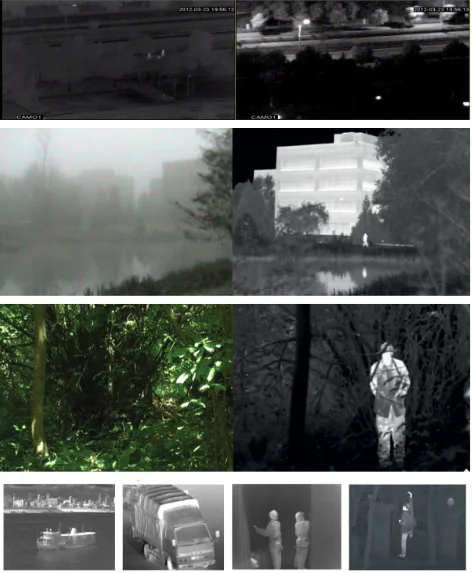

 thermal image 2thermal imageapplicationinfrared thermal image
