Wireless IP camera; Dual-spectrum High-speed PTZ camera; Infrared system;

FOB Reference Price:Get Latest Price
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNCTI
Model Number:
Q319
Type:
IP Camera
Style:
Box Camera
Sensor:
ULIS; Uncooled amorphous silicon FPA
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Thermal imaging algorithm:
IDE; HDR
Infrared resolution:
640*480
Warranty:
12 Months
IR Distance:
3000m
Networking protocol:
PELCO-D;PELCO-P;
Supply Ability
Supply Ability:
300 Piece/Pieces per Month
Packaging & Delivery
Port
shanghai
Lead Time :
within 15days

Product features

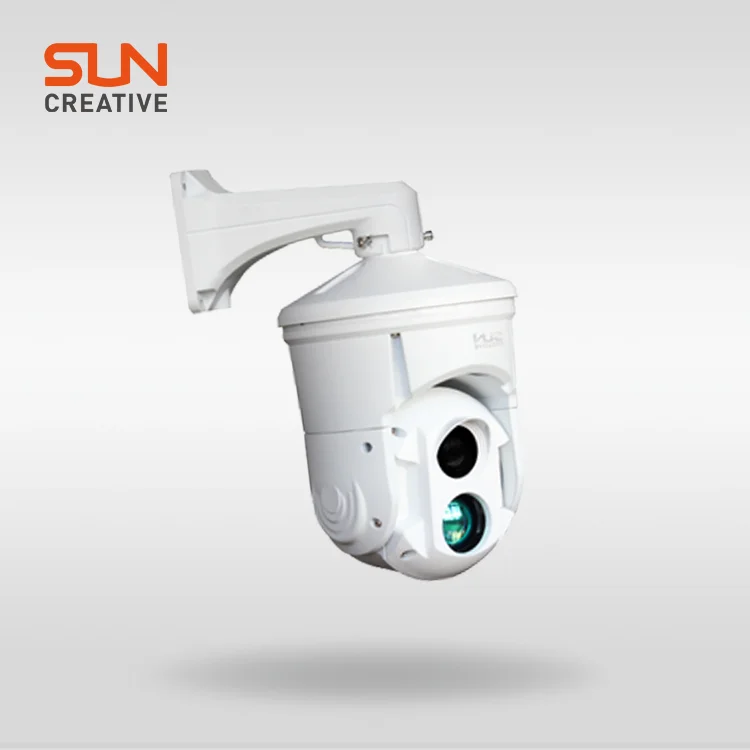

Built-in high sensitivity infrared thermal camera and ultralow illumination integrated HD IPC, all have been carried over a 360° omnidirectional high-speed PTZ. ZS-Q319 provides you the advantage of fast near range search and monitoring.



Powerful embedded intelligent analysis algorithm makes motion detection, region intrusion detection, line crossing detection, moving path tracking, target enhancement and other intelligent analysis functions realized in the device.



Leading thermal imaging procession algorithm: IDE (image details enhancement algorithm), HDR(high dynamic range algorithm: sea-sky mode, sky-earth mode)



Embedded high temperature alarm module, it can accurately pre-alarm the fire source in time based on the leading temperature alarming algorithm; the pre-alarming grades are adjustable, applicable for the need of fire pre-alarming in different scenes.



Applicable under extreme bad weather (including complete darkness, rain, snow, smog and etc.).



Powered by complete functions and interfaces; standardized security interface design; ONVIF and GB28281 compliant, easily access to the platform.



Impressive appearance with integrated structural design; easy installation and maintenance.



Application scenario



Applicable in scenarios where requires all-weather video surveillance, such as warehouse, urban community, airports, harbors, stations and so on;

Also applicable in scenarios where needs fire pre-alarm, such as: oil fields, farms, forests, grasslands, scenic sights, etc.






QS319-2



Technical Specification



Items/Technical specification

ZS-Q319

ZS-Q619

Thermal camera specification

Detector type

Uncooled Microbolometer FPA (Amorphous Silicon )

IR Resolution/

Pixel pitch

384×288/17μm

640×480/17μm

Thermal Sensitivity(NETD)

≤60mk

≤60mk

Frame rate

50Hz

Spectral range

8~14μm

Focal length

19mm, F#=1.0,

Optional: 25mm, 15mm, 9mm

Focus

Athermalized, Focus-Free

Digital zoom

1~8× continuous

Thermal image process algorithm

IDE, HDR

Thermal image Smart function

Motion detection, Intrusion, Moving path, Target enhancement

High-temperature alarm

High-Temperature tracking, Over-temperature alarm

Visible camera specification

Matrix type

1/2.8’’ CMOS

Effective pixels

1920(H)×1080(V)

Optical

Focus: 4.7~94mm, 20× optical zoom

FOV

61.4°~2.9°(wide end ~ tele end)

F-number

F1.6~F3.5

Minimum Illumination

Color: 0.05Lux@(F1.6, AGCON)

Black: 0.01Lux@(F1.6, AGCON)

Video compression

H.264/MJPEG

Video output bit rate

32Kbps-16Mbps

Video preview

Support preview by IE explorer, PC client, Mobile telephone APP

Camera technical specification

Pan/Tilt speed (Manual)

Pan: 0.1°~200°/s max, Tilt: 0.1°~100°/s max

Pan/Tilt speed

(Preset)

Pan: 200°/s,  Tilt: 100°/s

Pan/Tilt Range

Pan: 360° continuous,  Tilt: 100°(-90°~+10°)

Positioning accuracy

±0.1°

Automatic matching of focal length and speed

Automatic adjustment of speed with focal length

Programmable Preset

256

Automatic turnover

Automatically turns up180° when vertically downward 90°

Auto horizontal scan

Preset to 360°, 4 automatic scanning line

Video Output interface

Ethernet & Female BNC

Platform compatibility

ONVIF, GB28181 compliant

Network interface

RS-485

Baud rate

2400/4800/9600/19200bps

Network protocol

PELCO-D,PELCO-P & etc.

Operating temperature range

-20℃ ~ +60

Humidity

0~95% (no condensation)

Input voltage/power

AC24V/DC12V,30W

Weight

6 Kg

Size (Diameter × Height)

Φ223mm × 318mm

IP rating

IP66

Certification & Compliance

CE marked, FCC
