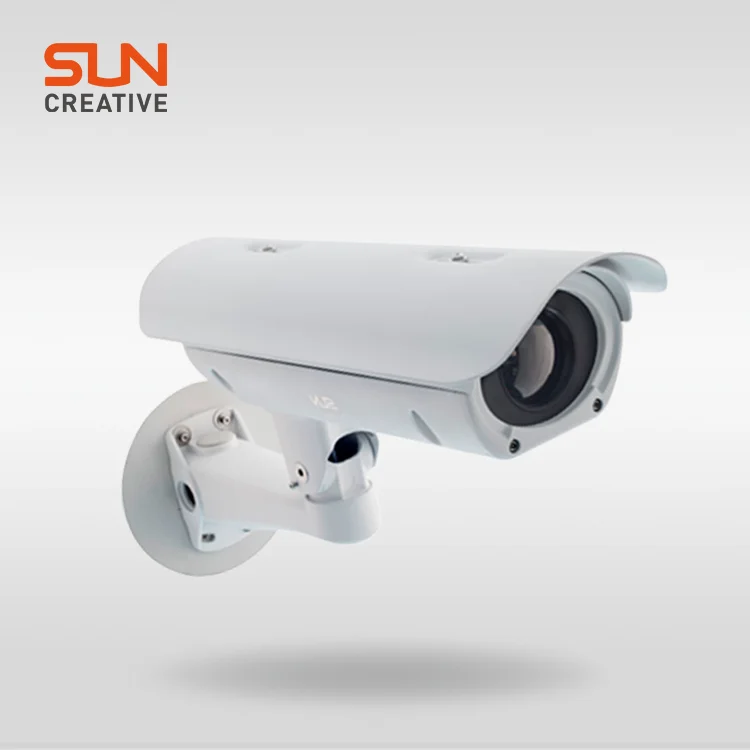

Outdoor Bullet Cmera; Thermal imaging system; Wireless IP camera

FOB Reference Price:Get Latest Price
Supply Ability:
300 Piece/Pieces per Month
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNCTI
Model Number:
H350
Type:
IP Camera
Style:
Box Camera
Sensor:
ULIS; Uncooled amorphous silicon FPA
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Thermal imaging algorithm:
IDE; HDR
Infrared resolution:
640*480
Warranty:
12 Months
IR Distance:
7000m
Networking protocol:
IPv4/v6; HTTP; TCP; QCIF
Packaging & Delivery
Delivery Time
within 15days

Product features

Powerful embedded intelligent analysis algorithm makes region intrusion detection, line crossing detection, moving path tracking, target enhancement and other intelligent analysis functions realized in the device.



Leading thermal imaging procession algorithm: IDE (Image Details Enhancement algorithm), HDR (High Dynamic Range algorithm: sea-sky mode, sky-earth mode)



Embedded high temperature alarm module, accurately pre-alarms the fire source in time based on the leading temperature alarming algorithm. The pre-alarming grades are adjustable; applicable for the need of fire pre-alarming in different scenes.



Applicable under extreme bad weather (including complete darkness, rain, snow, smog and etc.).



IP66 protection, wall-mounting bracket available for standard configuration; PTZ platform is optional ;



Powered by complete functions and interfaces, standardized security interface design; Pelco protocol compliant; easy for system integration.



Impressive appearance, small and portable, easy for installation and maintenance.

Application scenario

Applicable in scenarios where requires all-weather video surveillance, such as warehouse, urban community, airports, harbors, stations and so on;

Also applicable in scenarios where needs fire pre-alarm, such as:  oil fields, farms, forests, grasslands, scenic sights, etc.






Technical Specification



Items/Technical specification

ZS-H350

ZS-H350-D

Thermal camera parameters

Detector type

Uncooled Microbolometer FPA (Amorphous Silicon )

IR Resolution/

Pixel pitch

384×288/17μm

640×480/17μm

Thermal Sensitivity(NETD)

≤60mk

≤60mk

Frame rate

50Hz

Spectral range

8~14μm

Focal length

Standard: 50mm

Optional: 35mm, 25mm, 19mm, 15mm, 9mm

Focus

Electromotion focus

Digital zoom

1~8× continuous

Thermal image process algorithm

IDE, HDR

Thermal image intelligent function

Motion detection, Intrusion, Moving path, Target enhancement

High-temperature alarm

High-Temperature tracking, Over-temperature alarm

Technical parameters

Housing Material

Housing: Aluminum die casting

Sun-shield: Aluminum

Video output

Female BNC,

Optional: Additional RJ45 output for connecting to video server

Network interface

RS-232/RS-485/RS-422

Baud rate

2400/4800/9600/19200bps

Platform compatibility

PELCO-D, ZS-SP

Operating temperature range

-20℃~+50℃,

(-40℃~+75upgradable)

Storage temperature range

-45℃~+65

Humidity

0~95% (no condensation)

Input voltage

DC12V, 6W

Size

430mm×165mm×110mm

Weight

2.5Kg(w/o bracket)

IP rating

IP66

Certification and compliance

CE marked, FCC
