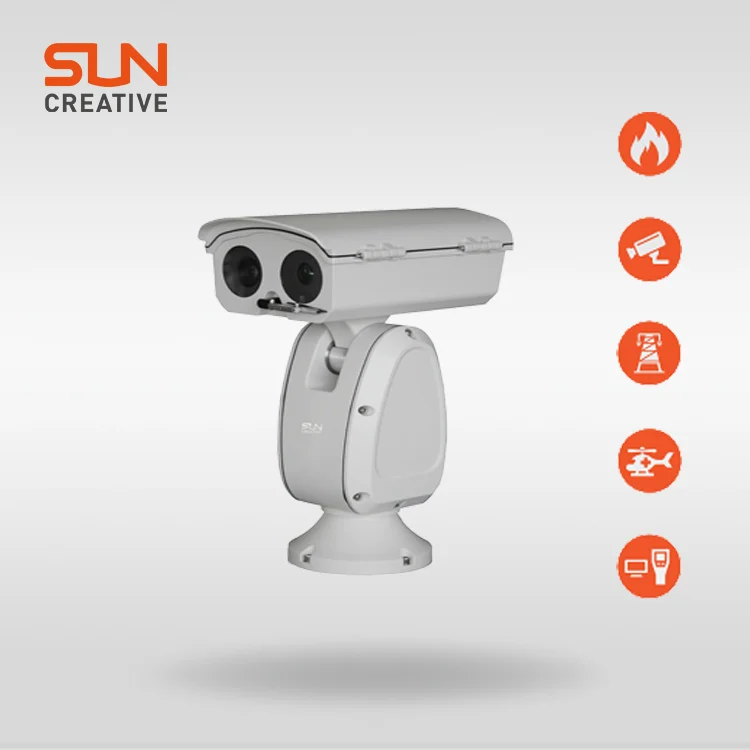

Middle&Remote range dual-spectrum PTZ system

FOB Reference Price:Get Latest Price
Supply Ability:
300 Piece/Pieces per Month
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNCTI
Model Number:
E375
Type:
IP Camera
Style:
Box Camera
Sensor:
ULIS; Uncooled amorphous silicon FPA
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Thermal imaging algorithm:
IDE; HDR
Visible camera Resolution:
1920*1080
Infrared resolution:
640*480
Warranty:
12 Months
IR Distance:
10000m
Platform compatibility:
ONVIF; GB28181 compliant
Network protocol:
PELCO-D; PELCO-P
Packaging & Delivery
Delivery Time
within 15days

ZS-E375/E675

Built in high sensitivity infrared thermal imaging camera with large aperture lens, and ultralow illumination integrated HD IPC; all have been carried over a 360° medium-size omnidirectional PTZ platform; supports medium and long range fast search and monitoring.

Powerful embedded intelligent analysis algorithm makes motion detection, region intrusion detection, line crossing detection, moving path tracking, target enhancement and other intelligent analysis functions done in the device.

Leading thermal imaging procession algorithm: IDE (image details enhancement algorithm), HDR(high dynamic range algorithm: sea-sky mode, sky-earth mode)

Embedded high temperature alarm module, you accurately pre-alarm the fire source in time based on the leading temperature alarming algorithm; Pre-alarming grades are adjustable, applicable for the need of fire pre-alarming in different scenes.

Applicable under extreme bad weather (including complete darkness, rain, snow, smog and etc.).

Powered by complete functions and interfaces; standardized security interface design, supporting ONVIF and GB28281 protocol, easily access to the platform.

Impressive appearance, integrated structural design, easy for installation and maintenance.





Application Scenario :

Applicable in scenarios where requires all-weather video
surveillance, such as warehouse, urban community,
airports, harbors, stations and so on; Also applicable in
scenarios where needs fire pre-alarm, such as: oil fields,
farms, forests, grasslands, scenic sights, etc.



Items/Technical Specification

ZS-E375

ZS-E375-D

Thermal camera specification

Detector type

Uncooled Microbolometer FPA

IR Resolution/

Pixel pitch

384×288/17μm

640×480/17μm

Thermal Sensitivity(NETD)

≤60mk

≤60mk

Frame rate

50Hz

Spectral range

8~14μm

Focal length

Standard: 75mm;

Optional: 25~100mm, 100mm, 50mm, 35mm

Focus

Electromotion focus

Digital Zoom

1~8×continuous

Thermal image algorithm

IDE, HDR

Thermal image Intelligence function

Motion detection, Intrusion, Moving path, Target enhancement

High-temperature alarm

High-Temperature tracking, Over-temperature alarm

Visible camera specification

Matrix type

1/2.8’’ CMOS

Effective pixels

1920(H)×1080(V)

Optical

Focal length: 8~250mm,

32× optical zoom

FOV

35.5°~2.0° (wide end ~ tele end)

F-number

F1.6~F4.5

Minimum Illumination

Color:0.05Lux@(F1.6, AGCON)

B/W:0.01Lux@(F1.6, AGCON)

Video compression

H.264/MJPEG

Video output bit rate

32Kbps-16Mbps

Video preview

Support preview by IE explorer, PC client, Mobile telephone APP

Camera technical specification

Pan/Tilt speed (Manual)

Pan: 0.1°~100°/s max, Tilt: 0.1°~100°/s max

Pan/Tilt speed

(Preset)

Pan: 100°/s,  Tilt: 100°/s

Pan/Tilt Range

Pan: 360° continuous,  Tilt: 130°(-90°~+40°)

Positioning accuracy

±0.02°

Programmable Preset

256

Auto horizontal scan

Preset to 360°, 4 automatic scanning line

Video Output interface

Ethernet & Female BNC

Platform compatibility

ONVIF, GB28181 compliant

Network interface

RS-485

Baud rate

2400/4800/9600/19200bps

Network protocol

PELCO-D, PELCO-P etc.

Operating temperature

-20℃~+60

Humidity

0~95% (no condensation)

Input voltage/

Power consumption

AC24V, 60W

Size(L×W×H)

360mm×250mm×472mm

Weight

20Kg

IP rating

IP66

Certification & Compliance

CE Marked, FCC
