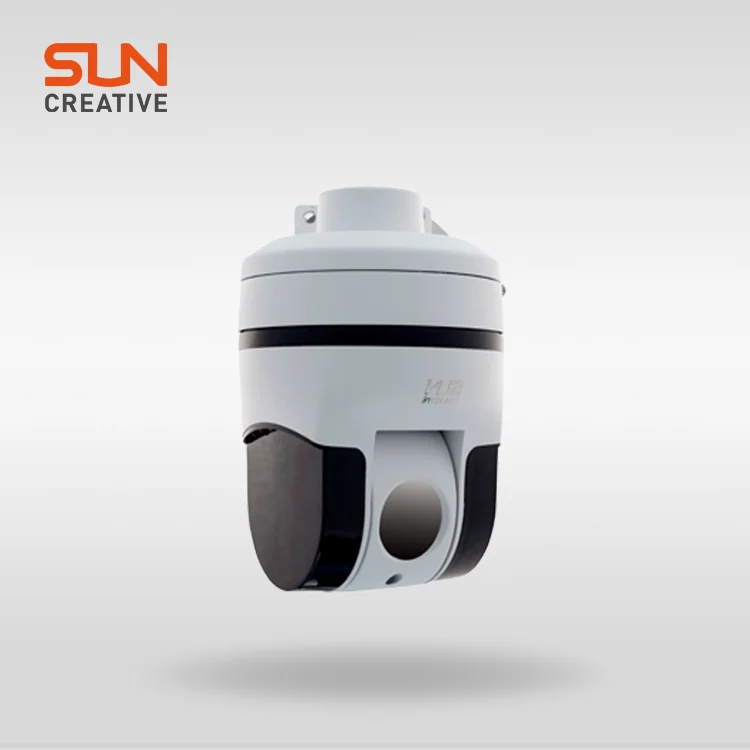

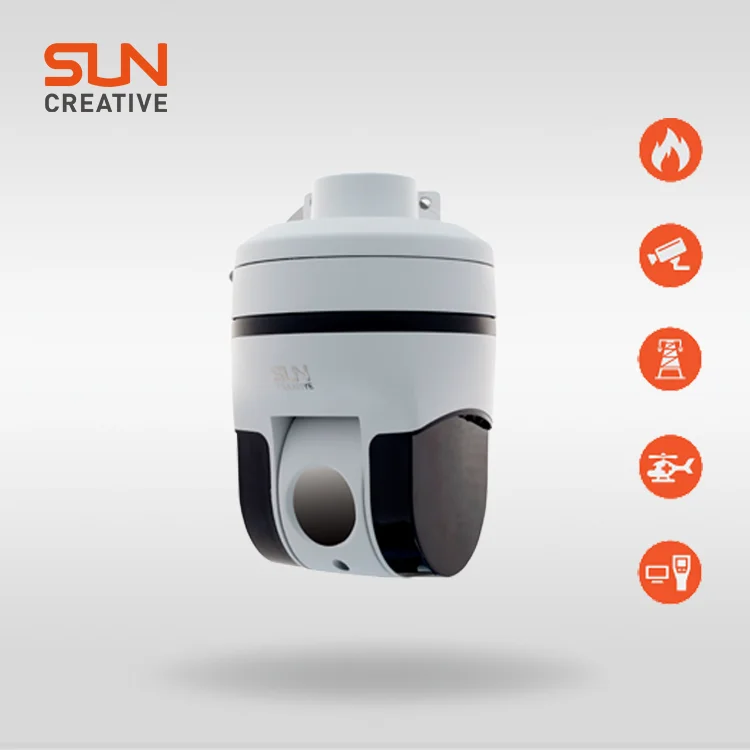

Continuous 360 pan high-speed PTZ infrared camera; Wireless wifi IP camera;

FOB Reference Price:Get Latest Price
Supply Ability:
300 Piece/Pieces per Month
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNCTI
Model Number:
H350
Type:
IP Camera
Style:
Box Camera
Sensor:
ULIS; Uncooled amorphous silicon FPA
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Thermal imaging algorithm:
IDE; HDR
Infrared resolution:
640*480
Warranty:
12 Months
IR Distance:
3000m
Networking protocol:
PELCO-D; PELCO-P
Packaging & Delivery
Delivery Time
within 15days

Product features

Continuous 360° pan high-speed PTZ camera, covering all monitoring areas, tracking targets swiftly.



Powerful embedded intelligent analysis algorithm makes region intrusion detection, line crossing detection, moving path tracking, target enhancement and other intelligent analysis functions realized in the device.



Leading thermal imaging procession algorithm: IDE (Image Details Enhancement algorithm), HDR (High Dynamic Range algorithm: sea-sky mode, sky-earth mode)



Embedded high temperature alarm module, accurately pre-alarms the fire source in time based on the leading temperature alarming algorithm. The pre-alarming grades are adjustable; applicable for the need of fire pre-alarming in different scenes.



Applicable under extreme bad weather (including complete darkness, rain, snow, smog and etc.).



Powered by complete functions and interfaces; standardized security interface design; Pelco protocol compliant, easy for system integration.



Impressive appearance, small and portable; easy for installation and maintenance.



Application scenario

Applicable in scenarios where requires all-weather video surveillance, such as warehouse, urban community, airports, harbors, stations and so on;

Also applicable in scenarios where needs fire pre-alarm, such as:  oil fields, farms, forests, grasslands, scenic sights, etc.






Technical Specification



Items/Technical specification

ZS-Q325

ZS-Q625

Thermal camera parameters

Detector type

Uncooled Microbolometer FPA (Amorphous Silicon )

IR Resolution/

Pixel pitch

384×288/17μm

640×480/17μm

Thermal Sensitivity(NETD)

≤60mk

≤60mk

Frame rate

50Hz

Spectral range

8~14μm

Focal length

Standard: 25mm,

Optional: 19mm, 15mm, 9mm

Focus

Athermalized, Focus-Free

Digital zoom

1~8× continuous

Thermal image process algorithm

IDE, HDR

Thermal image Smart function

Motion detection, Intrusion, Moving path, Target enhancement

High-temperature alarm

High-Temperature tracking, Over-temperature alarm

Camera technical Parameters

Pan/Tilt speed (Manual)

Pan: 0.4°~240°/s

Tilt: 0.4°~120°/s

Pan/Tilt speed

(Preset)

Pan: 240°/s

Tilt:120°/s

Pan/Tilt Range

Pan: 360° continuous;

Tilt: 100°(-90°~+15°), with automatic turnover function

Programmable Preset

128

Automatic turnover

Automatically turns up 180° when vertically downward 90°

Auto horizontal scan

355° configurable, 4 automatic scanning line

Video Output interface

Female BNC

Network interface

RS-485

Baud rate

2400/4800/9600/19200bps

Platform compatibility

PELCO-D, PELCO-P & etc.

Operating temperature range

-20℃~+50

Humidity

0~95% (no condensation)

Input voltage/

Power consumption

AC24V, 24W

Weight

3.5Kg (w/o bracket)

Size (Diameter × Height)

Φ178mm ×260mm

IP rating

IP66

Certification & Compliance

CE marked, FCC
