ONVIF Thermal imaging mini IP Camera

FOB Reference Price:Get Latest Price
$1,700.00 - $4,800.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SCTI
Model Number:
Thermeye 3-T
Type:
Analog Camera
Sensor:
Infrared thermal sensor
Special Features:
mini size
High resolution:
384X288/17um
Frame rate:
25Hz
Magnification:
1x ~8x Continuous
Sensitivity:
<50mK @300K
Power consumption:
<3W
Operating Voltage:
DC12V(+9V~+15V)
Weight:
<110g (w/o lens)
Size:
44.5mmx44mmx46mm (w/o lens)
Warranty:
1 Year
Technology:
Infrared
Style:
Mini Camera
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

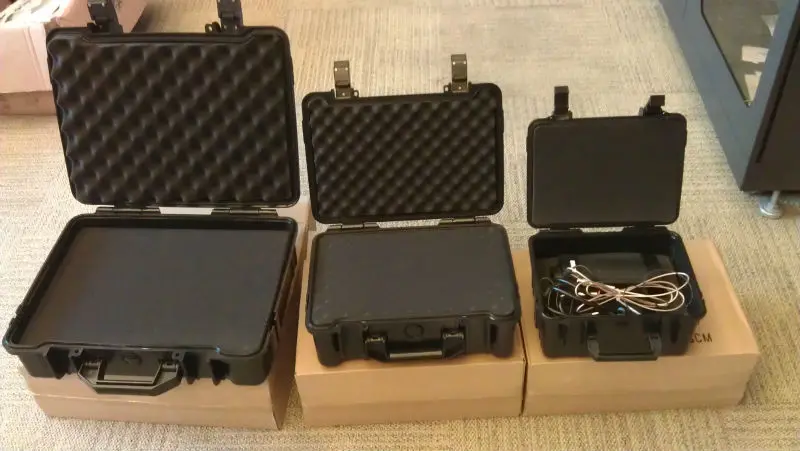

Standard plastic case with black sponge and carton box
Port
Shanghai
Lead Time :
Shipped in 20 days after payment
Video Description
Thermal module
Products discription

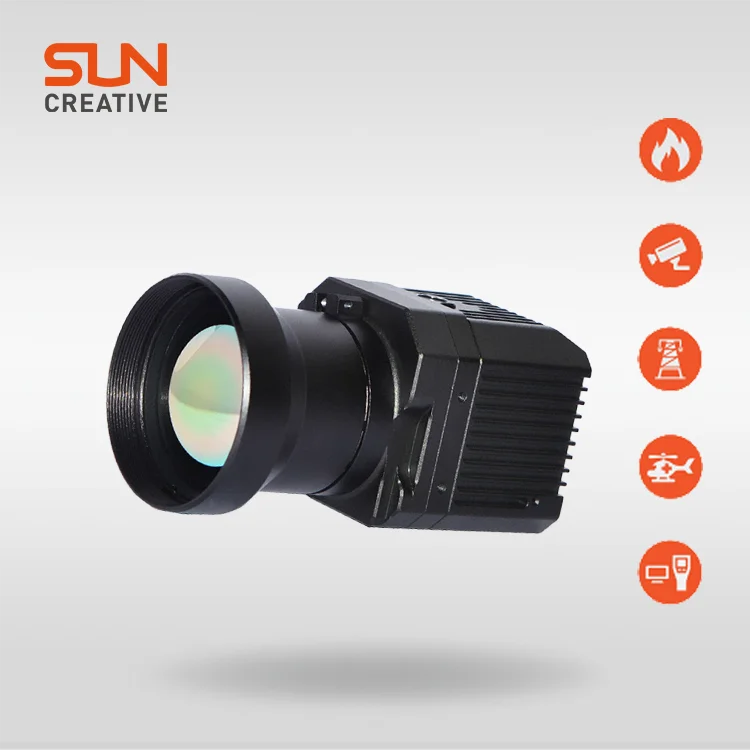

 Thermeye 3-T thermal imaging IP camera with temp measurement fucntion

 1-- Built-in video compression coding, easy for network transmission Powerful IDE image detail enhancement algorithm


2--  Intelligent high-temperature pre-alarming with various adjustable grades, higher detection efficiency, less misinformation

3-- Embedded intelligent analysis supports motion detection, line crossing detection, regional entry/exit detection, and intelligent PTZ tracking

4-- Professional photoelectric zooming technology

5--  AGC (automatic gain stability), 3D noise reduction, IDE (image details enhancement algorithm)

6--  Double serial communication: RS-232×1, R- 485×1 .
Items
Core
Thermeye 3-T


     Detector characteristic
Detector
Uncooled amorphous silicon FPA
Array format/Pixel pitch
384x288 / 17um
Sensitivity
≤50mk @ 300K
Frame rate
25Hz
Spectral range
8~14um



Imaging process
 Image resolution
720x576
 Image mode
HDR (high dynamic range): Sea-sky mode, sky-earth mode
 Image enhancement
 IDE (image details enhancement)
Palette
9 kinds of color available (rust, rainbow, white/black, etc.), palette color customizable
Lens option
12mm,19mm,25mm,35mm,40mm,50mm,75mm,100mm,150mm
Digital Zooming
1x~8x Continuous



Network
Network protocol
TCP/IP,ICMP,HTTP,DHCP,DNS,RTP,RTSP,RTCP,IGMP,802.1X ,ONVIF(Profile S)
video compression
H.264
Video preview connections
 Max. 10 at same time
Number of users; authority
 Max. 10

Temperature measurement* (available for ThermEye-T series)

Object temperature range
 -20℃ to 135℃ / 0℃ to 400℃
Accuracy
±5℃ or 5% of reading
Point Temperature measurement
From the center of a 4x4 region
Full screen temperature
measurement(Customizable)

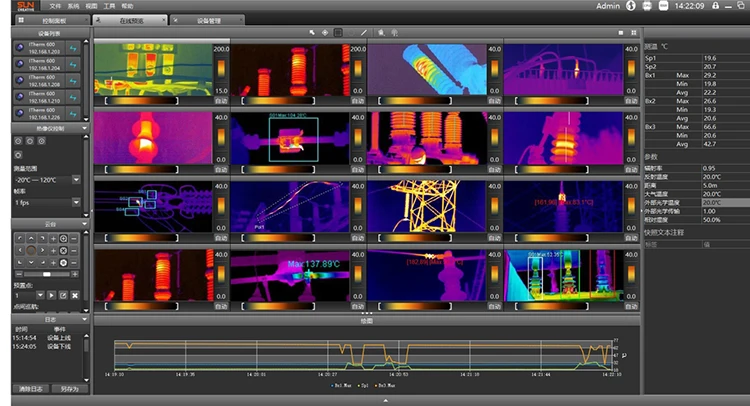

Supports global, point, line, box temperature measurement method

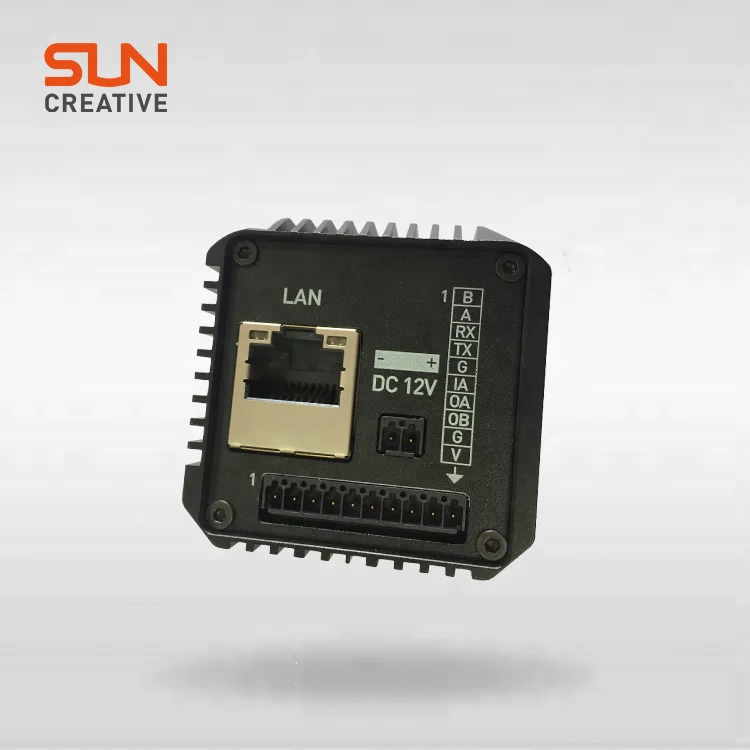

Interface
Network
 RJ45x1 10M/100MBase-TX, self-adaption Ethernet port (electrical)
 Video output
CVBS(75Ω) PAL
Serial port
 RS232, RS485
Storage interface
 Built-in Micro SD (TF) card, (max. 64G )
Alarm switch
 Inputx1, outputx1



General parameters
Working temperature & humidity range
-40℃ ~ +60℃ ; 5% ~95% (no condensation)
Weight
<110g  (w/o lens)
Dimension
44.5mmx44mmx46mm (w/o lens)
Storage temperature range
-45°C ~ +75°C
Input voltage
 DC12V(+9V~+15V)
Power consumption
 < 3W

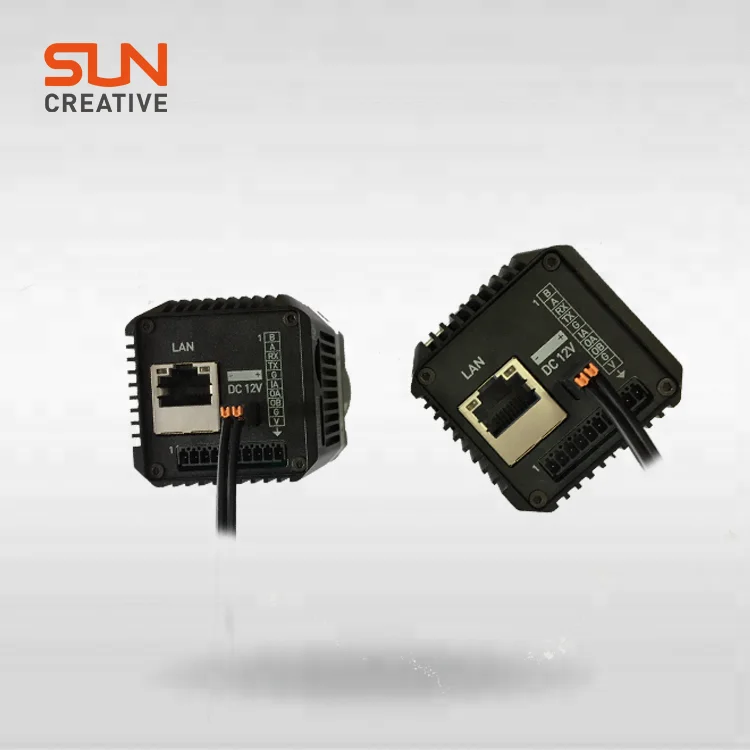

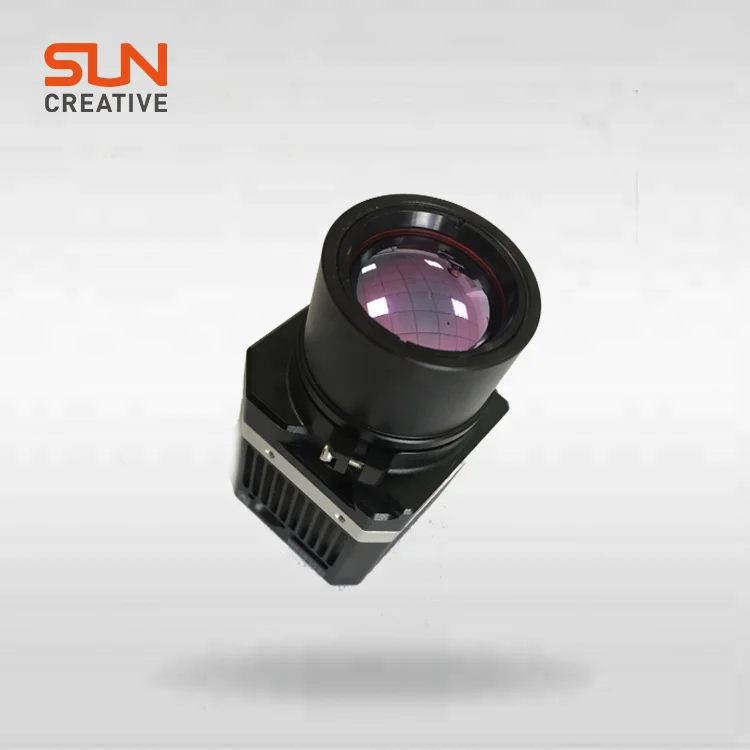

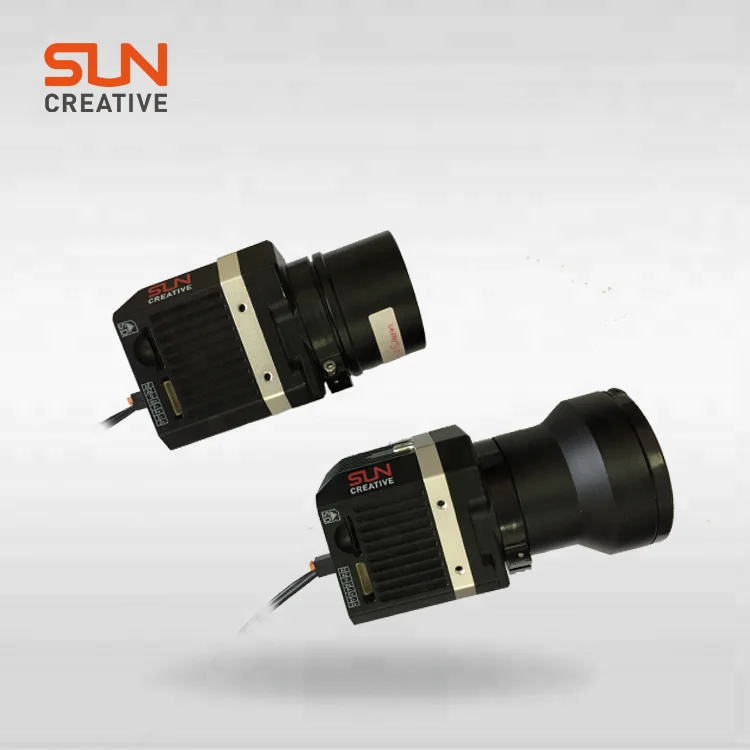

Detailed Images

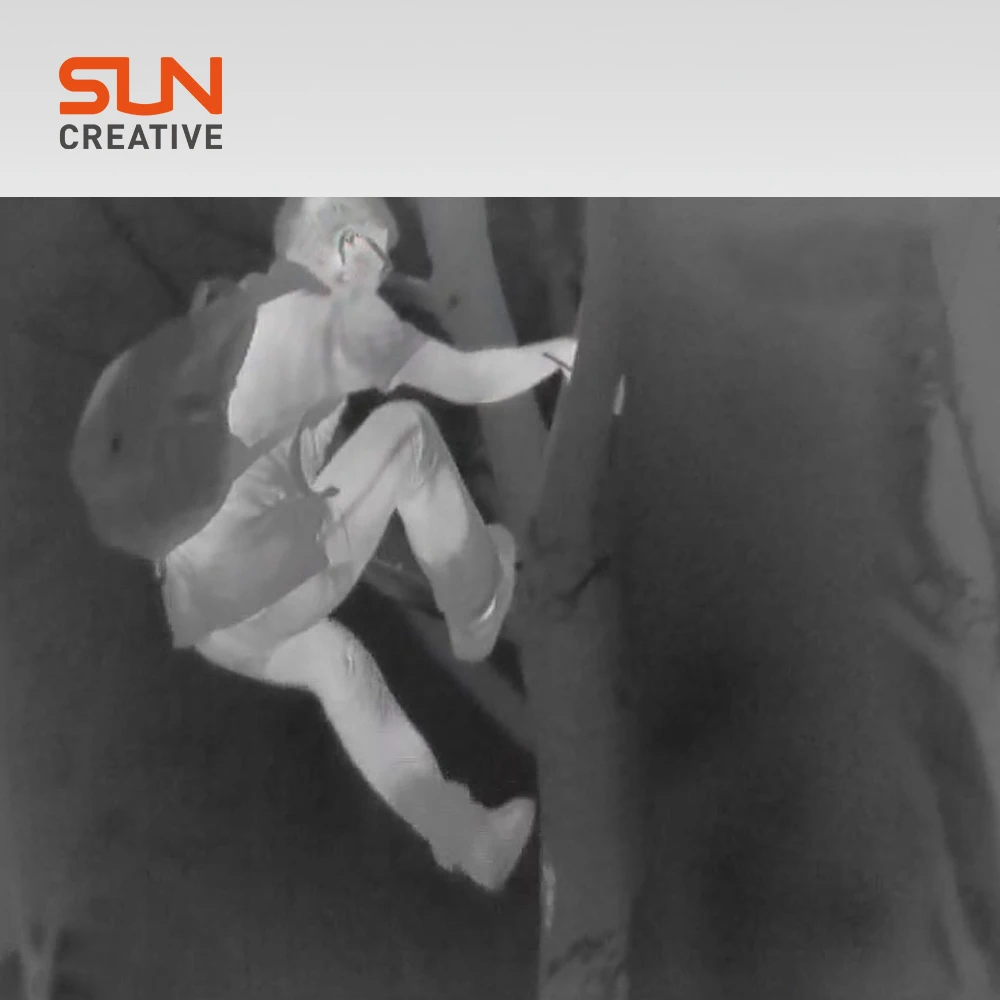

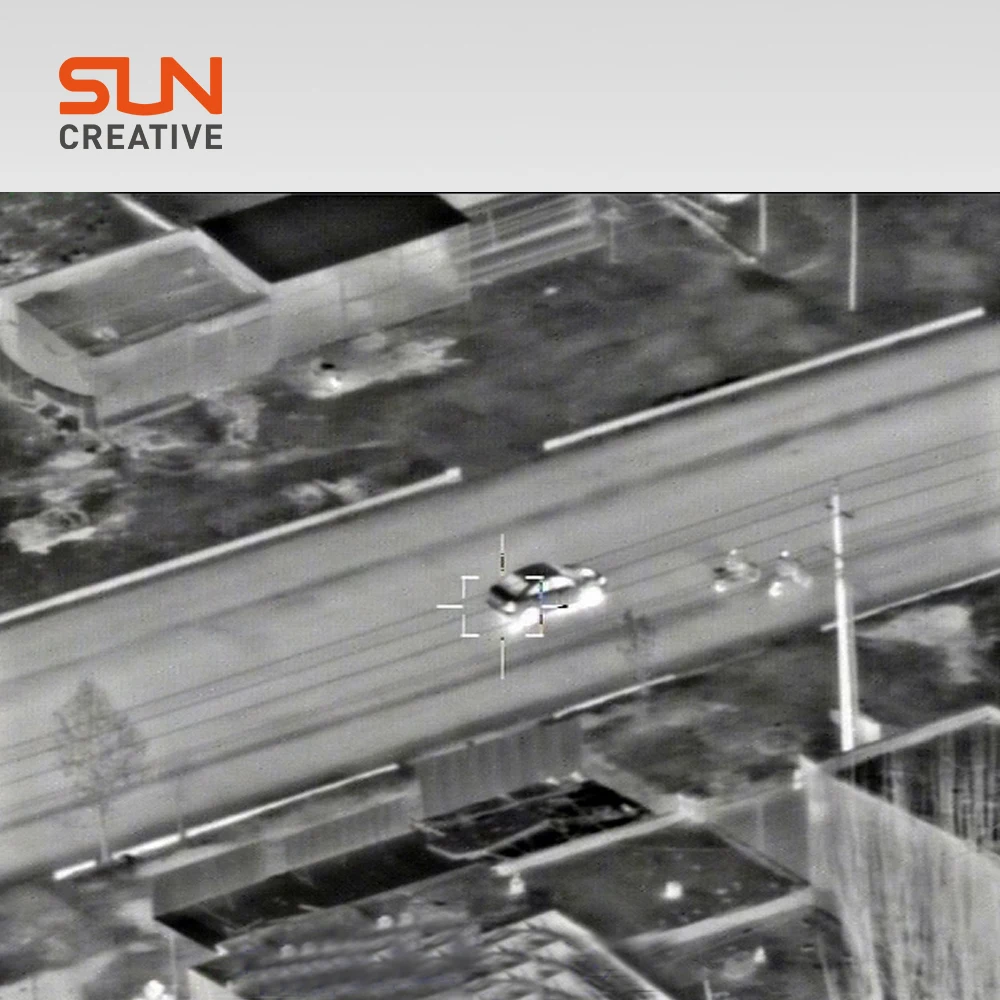

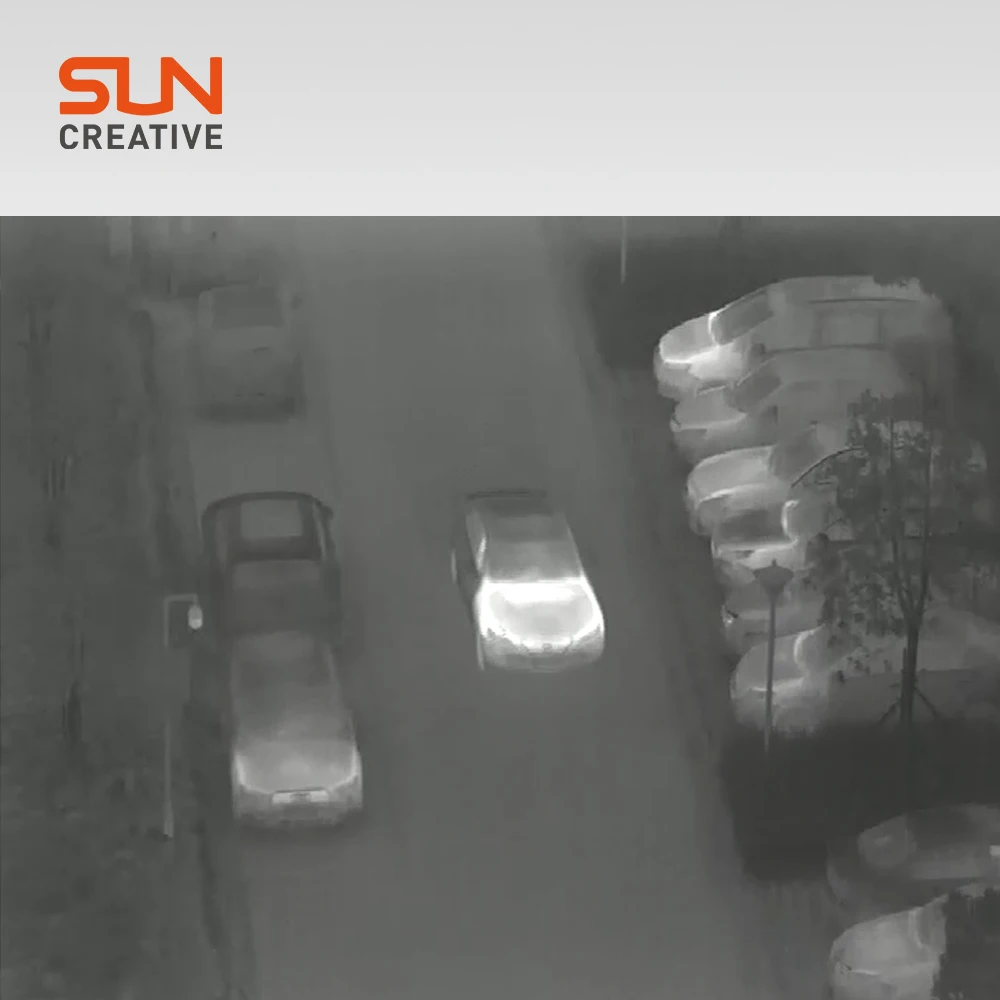

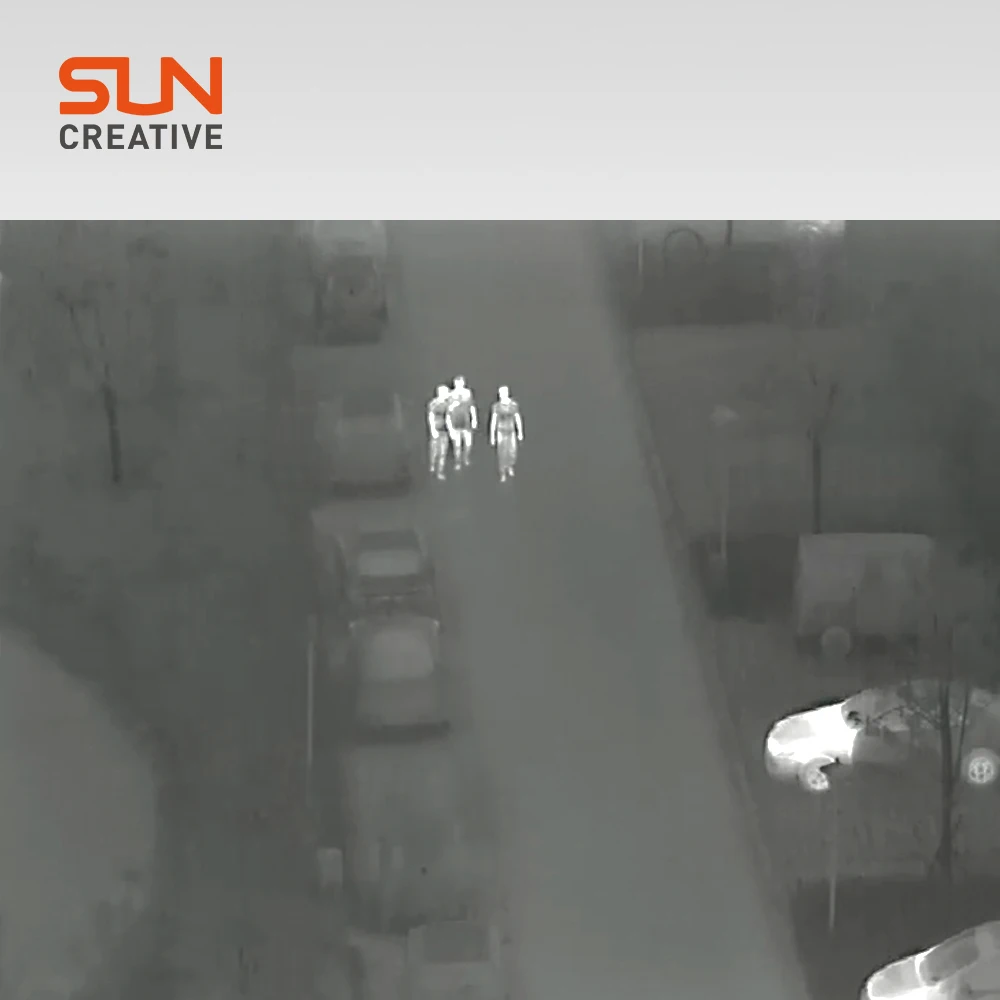

Thermal images

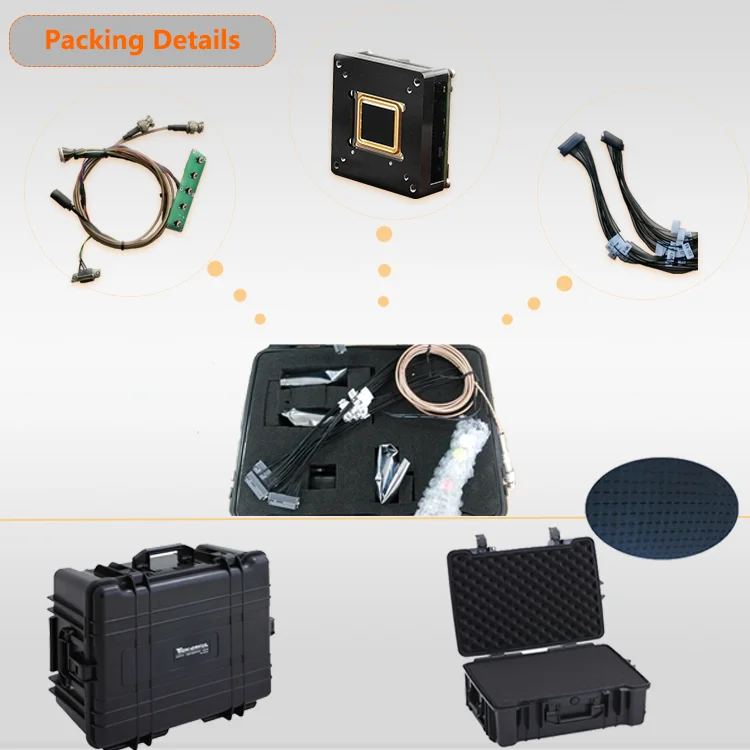

Packing & Delivery
Exhibition
